Turbo Rebuild Kit for 2009-2013 2.5L Subaru Forester, Impreza M1040304N

Low Stock! Only Available.

Rotomaster Turbocharger Service Kits provide all the wear items required to remanufacture a turbocharger that has not sustained any damage to the internal components. Featuring only O.E.-grade, direct-fit components, this kit offers a great, cost-effective way to perform a turbo repair without replacing the entire assembly.
Allows for reuse of the center, compressor and turbine housings
Kit includes all serviceable components in one package for turbochargers without internal damage
Saves money by eliminating the need to replace the complete turbocharger assembly

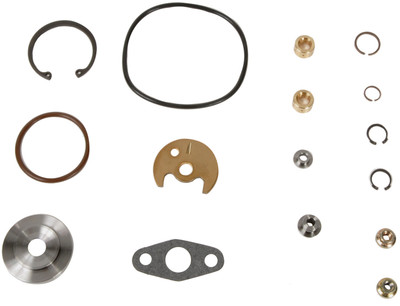

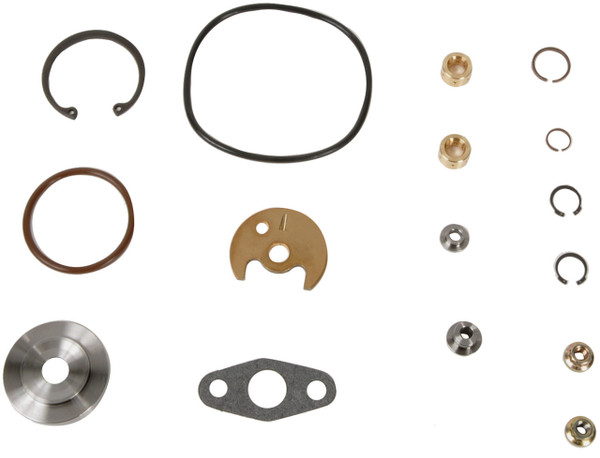

Package Contents

Journal Bearing; Thrust Bearing; Flinger; Thrust Collar; Piston Rings; O-ring; Retaining Ring; Seal Plate; Nut; Gasket

Application

2009-2010 Subaru Impreza 2.5L

2013 Subaru Forester 2.5L

2009-2012 Subaru Forester 2.5L

Turbo OE Part Number

12643932, 12652494, 12658317

Please review the policy here.

8 hours

Service Technician “B” or higher

Carefully inspect the air cleaner, air cleaner duct, and the exhaust manifold for any foreign material. Objects left in these areas can severely damage the turbocharger immediately on engine startup.
Remove old gaskets and left-over material from the exhaust manifold, the oil supply line and oil drain line flanges. Inspect these surfaces for cracks, flatness, or erosion.
Inspect the oil supply and drain lines for degradation and cracking.
Make sure that there are no kinks or any other type of restriction or clogging in either line.

Click here for the complete guide
